90 Degree Short Radius Bronze Elbow Fitting Manufacturer & Exporter – Silver Brazing Type
C90300 Bronze 90 Degree SR Elbow Manufacturer in India, UNS C90300 Bronze 90° SR Elbow Fitting Supplier, C90300 Gunmetal 90 Degree Short Radius Elbow Exporter, C90300 Bronze Silver Brazing Type 90 Degree SR Elbow Manufacturer, ASTM B61 C90300 Bronze 90 Degree SR Elbow Supplier, MIL-F-1183 C90300 Bronze 90 Degree SR Elbow Fittings Exporter, MIL-B-16541 C90300 Bronze 90 Degree Short Radius Elbow Manufacturer
Cunimet Alloys Pvt. Ltd. is a leading manufacturer and exporter of 90° short radius bronze elbow fittings designed in accordance with MIL-F-1183 specifications. These high-quality fittings are manufactured in ASTM B61 and ASTM B62 grades, including C90300 (Gunmetal) and C92200 (Leaded Tin Bronze), offering excellent strength, durability, and corrosion resistance.
Our 90° short radius elbows are specifically designed for silver brazing applications and are typically supplied with grooved ends suitable for brazed joints using alloys such as BCuP-5. These fittings can also be furnished with various combinations of silver brazed and pipe threaded end connections to meet diverse application requirements. They are compatible with copper, copper-nickel, and brass tubing systems, making them ideal for critical piping systems.
90 Degree SR Bronze Elbow (Silver Brazing Type)
Available in sizes from 1/4” to 12”, these fittings are rated at 200/400 PSI for sizes up to 5” and 150/250 PSI for larger sizes. Widely used in marine, shipbuilding, HVAC, and industrial piping systems, our products meet stringent quality standards and are supplied globally. For inquiries, contact sales@cunimetalloys.com.
Typical Uses of 90 Degree Short Radius Bronze Elbow Fitting for Silver Brazing Applications
- Marine & Shipbuilding: Used in seawater piping, cooling systems, and onboard fluid transfer lines where corrosion resistance is critical.
- HVAC & Refrigeration Systems: Ideal for copper tubing connections in air conditioning and refrigeration systems requiring compact, brazed joints.
- Copper-Nickel Piping Systems: Suitable for Cu-Ni pipelines in offshore platforms, desalination plants, and marine environments.
- Industrial Piping Systems: Used in water, oil, and gas lines where strong, leak-proof brazed connections are required in limited space.
- Power Plants & Utilities: Applied in cooling water systems, condensate lines, and auxiliary piping networks.
- Fire Protection Systems: Used in fire sprinkler piping systems where reliable joint strength and durability are essential.
- Compact Piping Layouts: Short radius design makes it ideal for installations where space constraints require tighter bending configurations.
C92200 Bronze 90 Degree SR Elbow Manufacturer in India, UNS C92200 Leaded Tin Bronze 90° SR Elbow Supplier, C92200 Bearing Bronze 90 Degree Short Radius Elbow Exporter, C92200 Bronze Silver Brazing Type 90 Degree SR Elbow Manufacturer, ASTM B62 C92200 Bronze 90 Degree SR Elbow Supplier, MIL-F-1183 C92200 Bronze 90 Degree SR Elbow Fittings Exporter, MIL-B-16541 C92200 Bronze 90 Degree SR Elbow Manufacturer
Product Specifications
| Specification | Details |
| Product | 90° Short Radius Bronze Elbow Fitting |
| Standard | MIL-F-1183 |
| Material Specification | ASTM B61 / QQ-C-390 / MIL-B-16541 |
| Material Grades | C90300 / C92200 |
| Alloy Type | Bronze (Gunmetal & Leaded Tin Bronze) |
| Application | Suitable for Silver Brazing (BCuP-5) |
| End Type | Grooved Ends for Brazing / Optional Threaded Ends |
| Compatible Tubes | Copper, Copper-Nickel, Brass Tubes |
| Size Range | 1/4” to 12” |
| Pressure Rating | 200/400 PSI (1/4” to 5”) 150/250 PSI (6” to 12”) |
| Configuration | Short Radius |
Service Rating
| Nominal Pipe Size | Max Pressure (WOG) | Max Temperature (°F) |
| 1/4” through 6” | 200 PSI | 425°F |
| Above 6” | 150 PSI | 425°F |
| 1/4” through 6” | 400 PSI | 150°F |
| Above 6” | 250 PSI | 150°F |
Applicable Standards
| Standard Type | Specification |
| Product Standard | MIL-F-1183 |
| Material Standard | ASTM B61 / QQ-C-390 / MIL-B-16541 |
| Brazing Alloy | QQ-B-654 (BCuP-5) |
| Tube Standards | MIL-T-16420, MIL-T-24107, MIL-T-20168 |
Compatible Tube Materials
| Tube Material | Specification |
| Copper Nickel Tube | MIL-T-16420 |
| Copper Tube | MIL-T-24107 |
| Brass Tube | MIL-T-20168 |

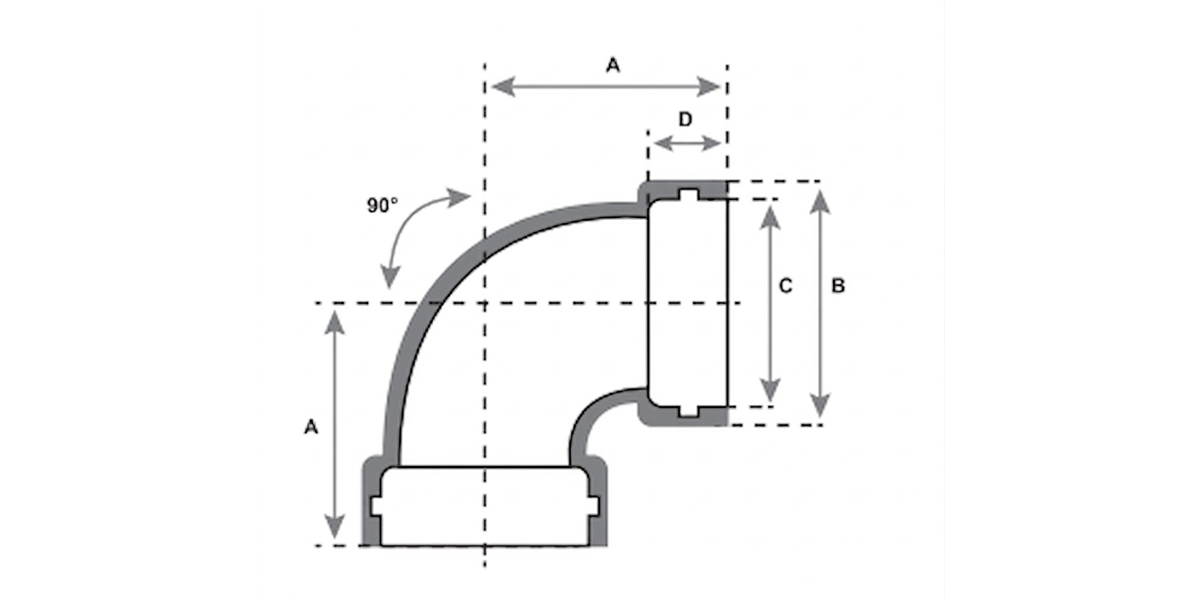

90 Degree Short Radius Bronze Elbow Dimensions Chart
| Nominal Pipe Size | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 3 1/2 | 4 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 0.97 | 1.05 | 1.29 | 1.43 | 1.68 | 1.86 | 1.92 | 2.20 | 2.88 | 3.18 | 3.43 | 3.69 |
| B | 0.700 | 0.855 | 1.020 | 1.250 | 1.535 | 1.900 | 2.160 | 2.675 | 3.215 | 3.880 | 4.400 | 4.940 |
| C (Min–Max) | 0.540 – 0.543 | 0.675 – 0.678 | 0.840 – 0.843 | 1.050 – 1.053 | 1.315 – 1.318 | 1.660 – 1.663 | 1.900 – 1.905 | 2.375 – 2.380 | 2.875 – 2.882 | 3.500 – 3.507 | 4.000 – 4.007 | 4.500 – 4.507 |
| D | 17/64 | 5/16 | 3/8 | 13/32 | 7/16 | 1/2 | 5/8 | 21/32 | 25/32 | 53/64 | 7/8 | 29/32 |
| Custom Sizes Available on Request | ||||||||||||
Key Features
| Feature | Description |
| Short Radius Design | Ideal for compact piping systems with limited space |
| Corrosion Resistance | Excellent for marine and industrial environments |
| Joint Type | Silver Brazed (Field Installation) |
| Leak Protection | Ensures strong and leak-proof joints |
| Versatility | Available with brazed or threaded end connections |
Types of 90 Degree SR Bronze Elbow Fittings (C90300 & C92200)
| C90300 Bronze 90 Degree SR Elbow Exporter | C92200 Bronze 90 Degree SR Elbow Supplier |
| C90300 Bronze 90° SR Elbow Fitting | C92200 Bronze 90° SR Elbow Fitting |
| C90300 Gunmetal 90 Degree SR Elbow | C92200 Leaded Tin Bronze 90 Degree SR Elbow |
| C90300 Bronze Silver Brazing Type 90 SR Elbow | C92200 Bronze Silver Brazing Type 90 SR Elbow |
| ASTM B61 C90300 90 Degree SR Bronze Elbow | ASTM B62 C92200 90 Degree SR Bronze Elbow |
| MIL-F-1183 C90300 Bronze 90 SR Elbow | MIL-F-1183 C92200 Bronze 90 SR Elbow |
| C90300 Bronze 90 Degree SR Elbow for Brazing | C92200 Bronze 90 Degree SR Elbow for Brazing |
| C90300 Bronze Grooved End 90 SR Elbow | C92200 Bronze Grooved End 90 SR Elbow |
| 90 Degree SR Bronze Elbow for Silver Brazing | 90 Degree SR Bronze Elbow Manufacturer for Silver Brazing |
| Short Radius 90 Degree Bronze Elbow Manufacturer | MIL-F-1183 Short Radius Bronze 90° Elbow Supplier |
| Bronze 90 Degree Elbow for Silver Brazing Applications Exporter | Grooved End Bronze 90 Degree Elbow Manufacturer |
Industries & Applications We Serve
Exporting 90 Degree SR Bronze Elbow Fittings Worldwide
